Custom Size Ventilated Steel Cable Tray | Perforated Cable Support Tray with Multiple Surface Finishes for Industrial Cable Wiring

Place of Origin : Hebei, China

Packaging Details : According to customer needs

Appearance : Smooth Surface, Deburred Edge Design

Payment Terms : T/T

Color : Customizable Colors Available

Delivery Time : 15-30 work days

Side Rail Height : Range: 30 mm to 500 mm

Material : Carbon Steel Plate

Certification : ISO9001

MOQ : Negotiable

Width : 50mm, 100mm, 150mm, 300mm, 450mm, 600mm

Price : Negotiable

Application : Indoor & Outdoor Engineering Usage

Contact Now

Custom Size Ventilated Steel Cable Tray | Perforated Cable Support Tray with Multiple Surface Finishes for Industrial Cable Wiring

Product Overview

A reliable cable support framework is a fundamental component to guarantee continuous secure operation of industrial power and communication facilities. Our perforated cable tray is constructed with elongated ventilation holes on the base plate, specially designed to tackle heat accumulation issues when laying high-load power cables.

The ventilated tray steadily holds various power and signal cables, while its hole structure enables natural air convection and water outflow. Customers can select matching cover panels to provide extra protection against external impact, dust and rubble.

Several critical site conditions need assessment prior to tray selection. You need to confirm suitable bearing capacity based on the overall weight of arranged cables to avoid structural deformation. Pick appropriate surface protection techniques according to on-site humidity and corrosive medium. Besides, make sure all matched hangers, connecting plates and fasteners are consistent with tray specifications to realize smooth installation.

Features

Effective Heat Exchange & Liquid Drainage

Uniformly arranged long oval holes boost air convection inside the tray. Heat generated during cable operation can disperse outward efficiently. Meanwhile, accumulated condensed water and rainwater can drain smoothly, delaying cable ageing progress. Robust U-Shaped Carrier Structure

Integrated U-shaped main body prevents cables from sliding and displacement. Raised side baffles constrain wiring within the tray scope, perfectly suitable for horizontal and vertical wiring layout in factories, commercial complexes and communication base stations. Flexible On-site Layout Adjustment

Modular splicing design supports free cutting, extending and angle adjustment on construction sites. It is highly adaptable to complex curved wiring routes and uneven installation heights to meet varied construction layout demands. Diversified Anti-Corrosion Surface Solutions

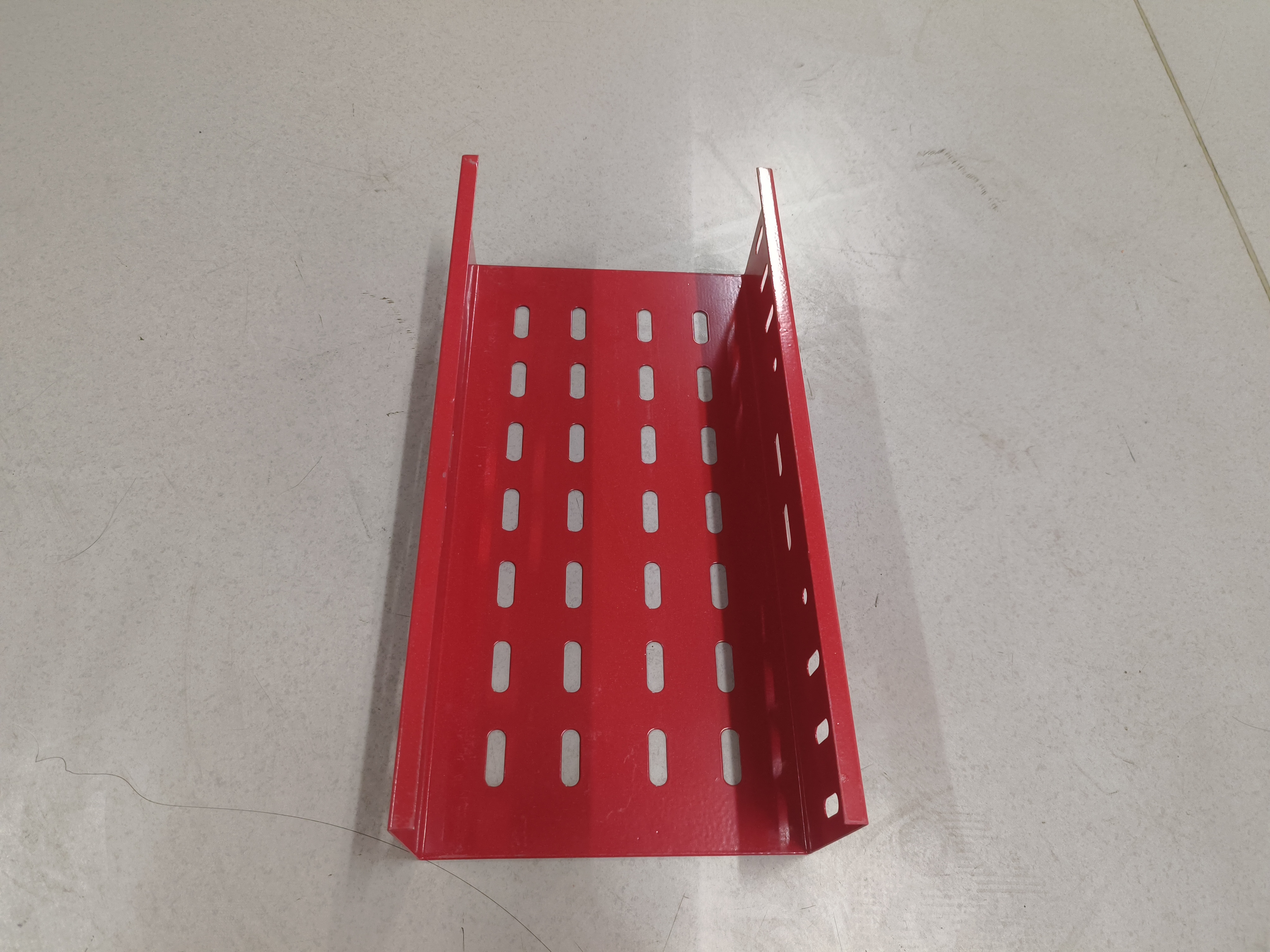

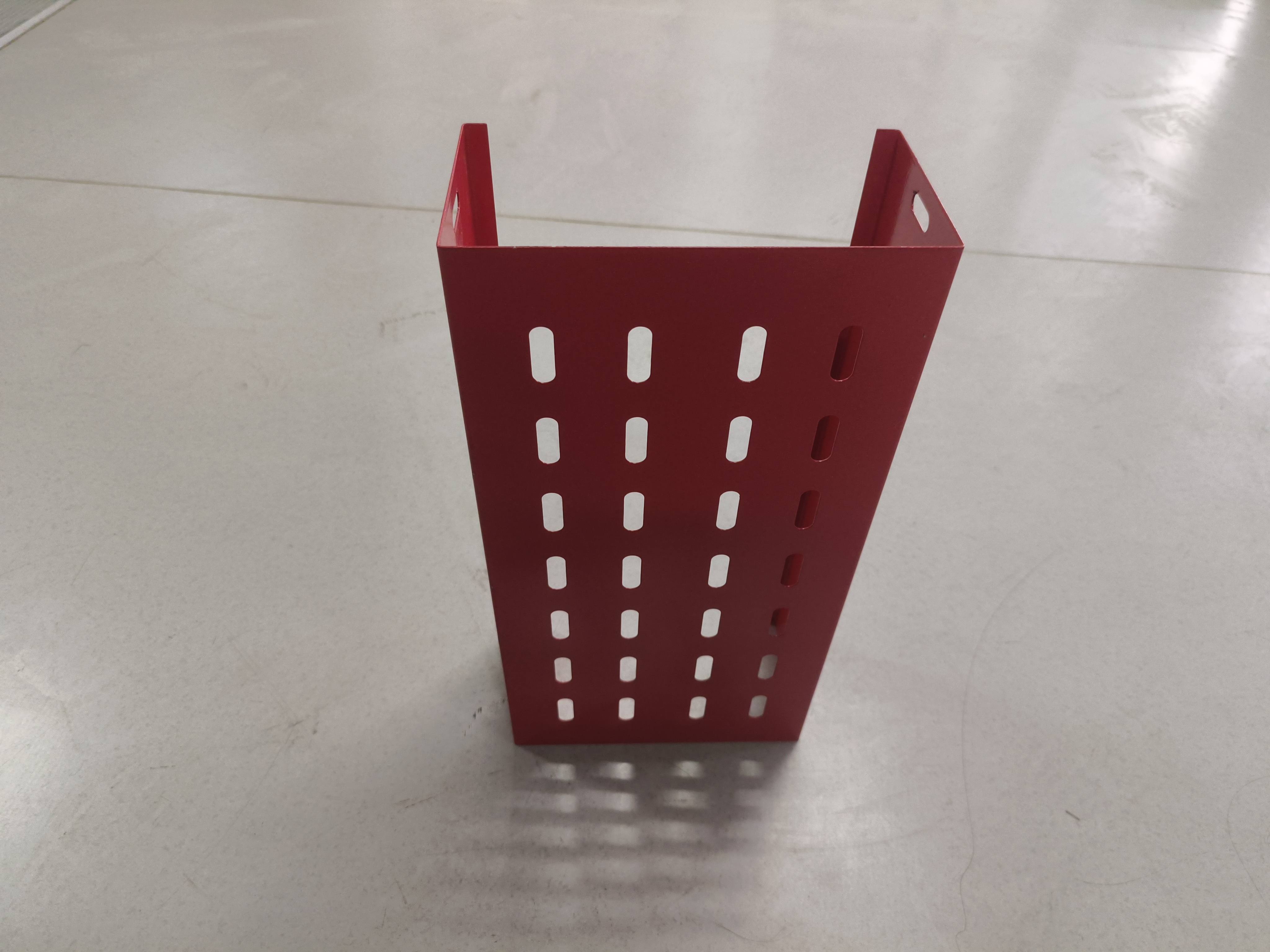

Available techniques include electrostatic powder coating (red finish in picture), electro-galvanizing and hot-dip galvanizing. Multiple surface treatments support application scenarios such as indoor workshops, open outdoor areas and mild corrosive environments.

Technical Specifications

Attribute	Specification
Surface Treatment Quality	Polished smooth edges, no sharp burrs
Main Characteristics	Ventilation, heat dissipation and water drainage
Installation Options	Wall mounting, overhead suspension, ground placement
Side Rail Height	Customizable range: 30 mm ~ 500 mm
Applicable Environment	Indoor and outdoor engineering scenarios
Surface Finishing	Powder Coating, Electro Galvanized, Hot-dip Galvanized
Connection Method	Assembled with connecting plates and standard bolts
Bearing Capacity Class	Optional Light, Medium and Heavy Load Types

Applications

The Galvanized Cable Ladder System efficiently manages and supports cables in various industries including telecommunications, power distribution, and construction. Its corrosion-resistant design makes it ideal for outdoor applications exposed to rain, snow, extreme temperatures, and corrosive environments.

Custom Size Ventilated Steel Cable Tray | Perforated Cable Support Tray with Multiple Surface Finishes for Industrial Cable Wiring

F&Q

Where is the Galvanized Cable Tray made?

Manufactured in Hebei, China

Is the Galvanized Cable Tray certified?

ISO9001 certified

What is the Minimum Order Quantity?

Negotiable based on requirements

How is pricing determined?

Custom pricing available upon request

What are delivery timelines?

15-30 work days with flexible packaging options
